Experience Sitecore !

One day a request came up from the business, they wanted to have a nice "information" icon appearing aside from a text, clicking which opens up a popup modal dialog showing more information related to that line of content. From an UX point of view that works as a decent solution preventing page from bloating with more-specific info.

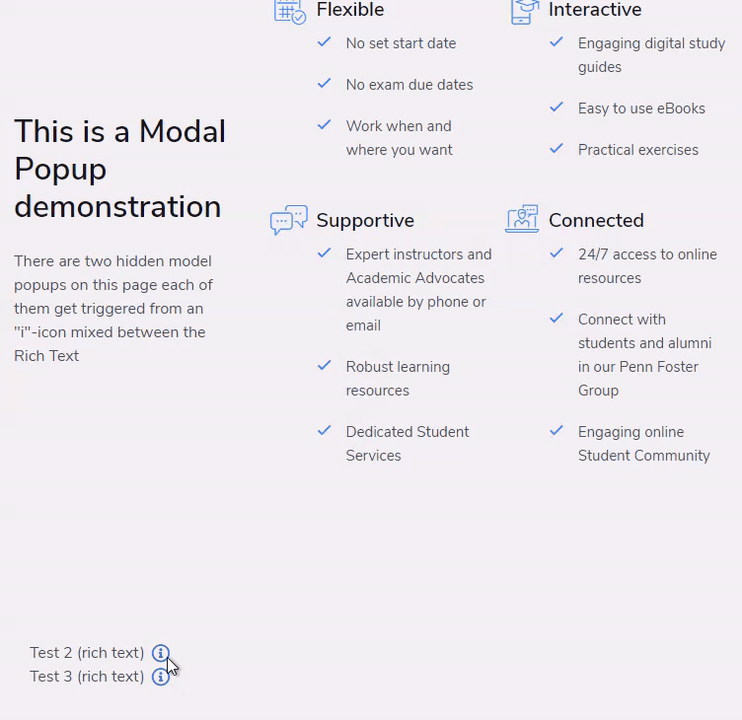

From page visitor's eyes it looks as below:

There was a FE code provided that does exactly as described. If I was responsible for Front-End, I'd have chosen using Emoji as they're an official part of Unicode, as therefore gets supported with all browsers. But front-end was handed to me as given and I assume there was a decent reason for using it in a provided way.

An any case, our mission will be implementing that with BE with certain challenges:

1. You may have multiple popups on the single page, at least more than one.

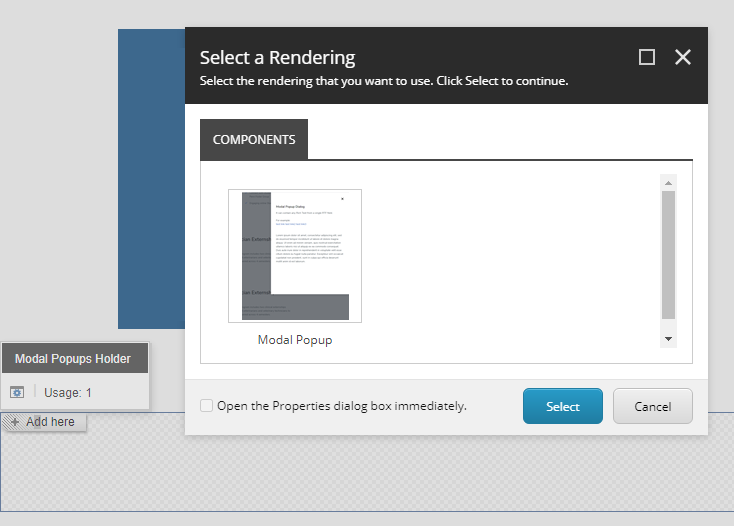

2. User needs being able dynamically adding popups to a page (sometimes removing them).

3. Each popup needs to be editable, while in their normal state they are hidden.
4. Because of that above, there bight be a user-friendly way of distinguishing popups and giving them individual names.

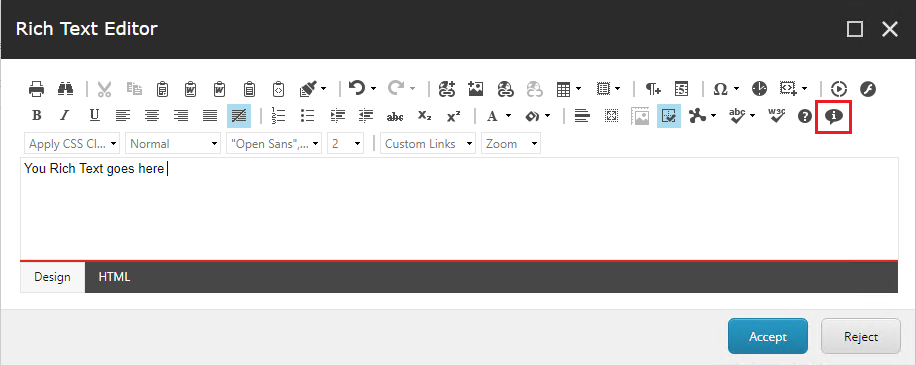

5. An information icon should be editable from with Rich Text, mixed along classical RTE interface
6. Each "i"-icon should get referenced with a specific popup, so that clicking different icons trigger different popups.
7. Because of that, a clear and nice way of referencing and icon to a popup should be presented.
8. The BE solution is classical MVC implementation, with no SXA or JSS (unfortunately)

THOUGHTS


    ... content goes here

@if (Sitecore.Context.PageMode.IsExperienceEditor)
{


        Modal popup: @name

}

<button data-name="NAME_OF_POPUP" type="button" aria-label="View Info" aria-haspopup="dialog"  class="button--more-info a-icon-info"></button>

@using Glass.Mapper.Sc.Web.Mvc
@using Feature.Components.Templates
@using Feature.Components.Extensions
@model ITitleWithRichText

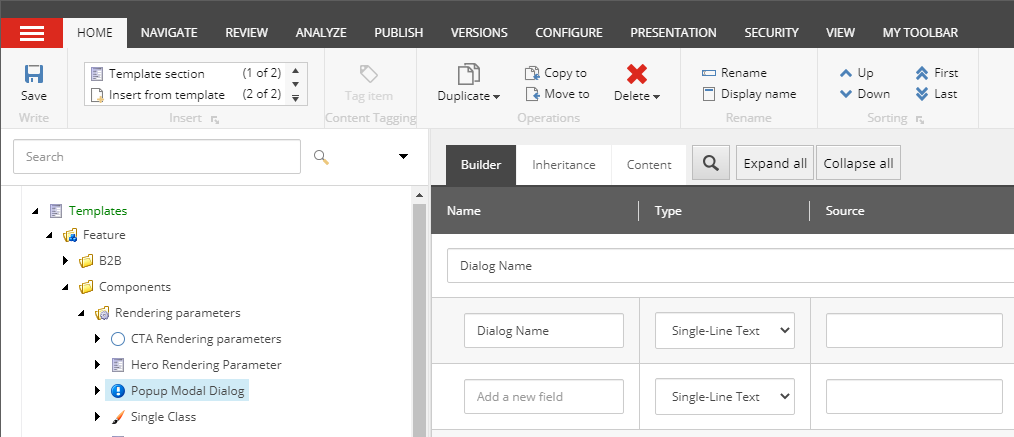

@{ var name = Html.GetRenderingParametersString<IPopupModalDialog>(m => m.DialogName); }



        ..SVG code goes here..




@Html.Glass().Editable(m => m.Title)
        @Html.Glass().Editable(m => m.Text)


@if (Sitecore.Context.PageMode.IsExperienceEditor)
{


        Modal popup: @name

}

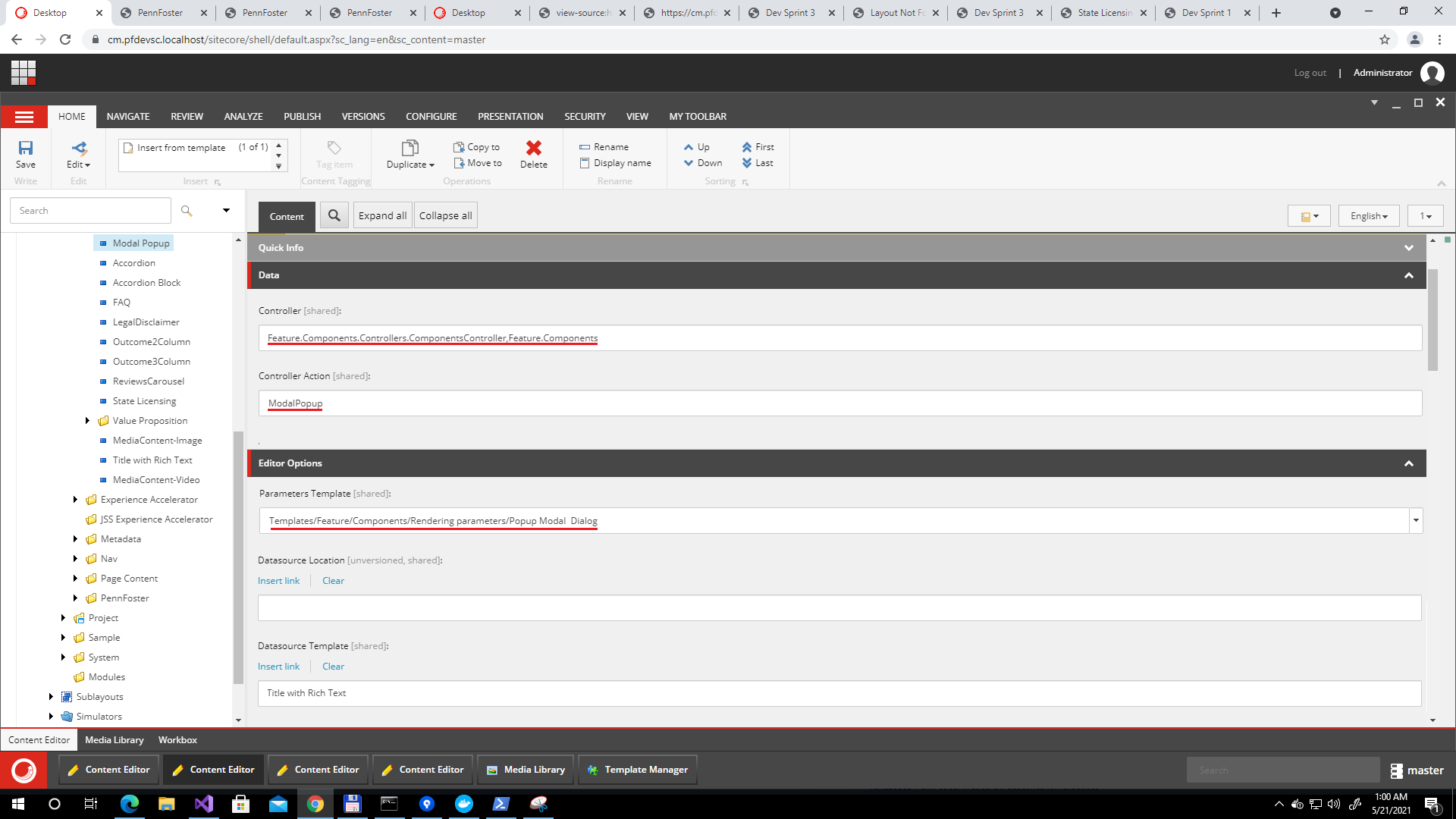

public ActionResult ModalPopup()
{
    var model = _componentsRepository.GetModel<ITitleWithRichText>();
    return View("~/Views/Feature/Components/ModalPopup.cshtml", model);
}

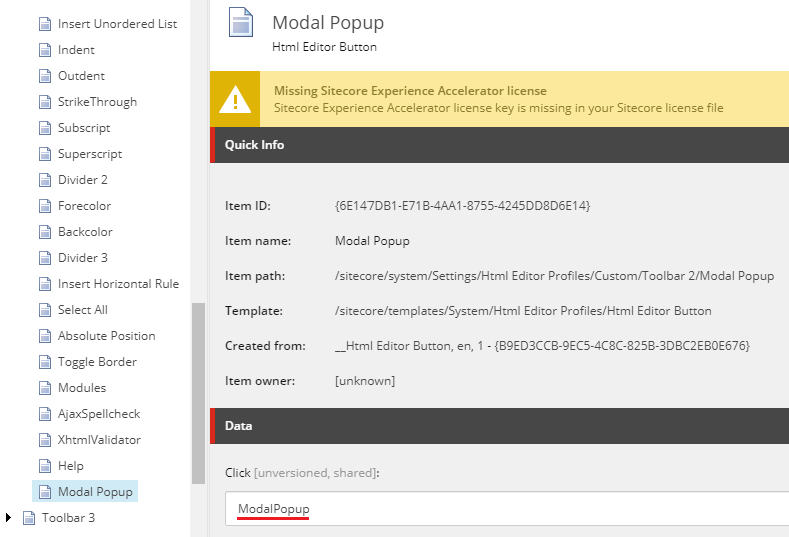

/sitecore/system/Settings/Html Editor Profiles/Custom



      /sitecore/system/Settings/Html Editor Profiles/Custom



html .ModalPopup { background-position: -6px center }

Telerik.Web.UI.Editor.CommandList["ModalPopup"] = function(commandName, editor, args) {
  var html = editor.getSelectionHtml();
  var id;

  if (!id) {
    id = GetMediaID(html);
  }

  scEditor = editor;

  editor.showExternalDialog(
    "/sitecore/shell/default.aspx?xmlcontrol=RichText.ModalPopup&la=" + scLanguage + (id ? "&fo=" + id : "") + (scDatabase ? "&databasename=" + scDatabase : "") ,
    null, 400, 260, scModalPopup, null, "Insert Modal Popup Dialog", true, Telerik.Web.UI.WindowBehaviors.Close,false, false
  );
};

function scModalPopup(sender, returnValue) {
  if (!returnValue) {
      return;
  }

  scEditor.pasteHtml(unescape(returnValue.Text), "DocumentManager");
}







            Please enter your modal dialog ID. That is the value being rendered with 'data-name' attribute of a modal popup.






using System;
using Sitecore.Web.UI.Pages;
using Sitecore.Diagnostics;
using Sitecore;
using Sitecore.Web;
using Sitecore.Web.UI.Sheer;

namespace Foundation.Editing.Dialogs
{
    public class ModalPopup : DialogForm
    {
        protected Sitecore.Web.UI.HtmlControls.Combobox Target;

        string Wrapping = @"";

        protected override void OnLoad(EventArgs e)
        {
            Assert.ArgumentNotNull(e, "e");
            base.OnLoad(e);

            if (!Context.ClientPage.IsEvent)
            {
                Mode = WebUtil.GetQueryString("mo");

                Context.ClientPage.ClientScript.RegisterStartupScript(GetType(), "script", "scOnLoad();", true);
            }
        }

        protected override void OnOK(object sender, EventArgs args)
        {
            Assert.ArgumentNotNull(sender, "sender");
            Assert.ArgumentNotNull(args, "args");

            string code = string.Format(Wrapping, Target.Value);

            if (Mode == "webedit")
            {
                SheerResponse.SetDialogValue(StringUtil.EscapeJavascriptString(code));
                base.OnOK(sender, args);
            }
            else
            {
                SheerResponse.Eval($"scClose({StringUtil.EscapeJavascriptString(code)})");
            }
        }

        protected override void OnCancel(object sender, EventArgs args)
        {
            Assert.ArgumentNotNull(sender, "sender");
            Assert.ArgumentNotNull(args, "args");

            if (Mode == "webedit")
            {
                base.OnCancel(sender, args);
            }
            else
            {
                SheerResponse.Eval("scCancel()");
            }
        }

        protected string Mode
        {
            get
            {
                string str = StringUtil.GetString(base.ServerProperties["Mode"]);
                if (!string.IsNullOrEmpty(str))
                {
                    return str;
                }
                return "shell";
            }
            set
            {
                Assert.ArgumentNotNull(value, "value");
                base.ServerProperties["Mode"] = value;
            }
        }
    }
}

function scClose(text) {
    var returnValue = {
        Text: text
    };

    getRadWindow().close(returnValue);
}

function GetDialogArguments() {
    return getRadWindow().ClientParameters;
}

function getRadWindow() {

    if (window.radWindow) {
        return window.radWindow;
    }

    if (window.frameElement && window.frameElement.radWindow) {
        return window.frameElement.radWindow;
    }

    return null;
}

var isRadWindow = true;

var radWindow = getRadWindow();

if (radWindow) {
    if (window.dialogArguments) {
        radWindow.Window = window;
    }
}

function scOnTargetLoad() {
}

function scOnLoad() {

    let select = document.getElementById("Target");
    let list = parent.parent.parent.document.querySelectorAll('section[data-name]')
    let values = Array.from(list).map(x => x.getAttribute('data-name'));

    for (var i = 0; i < values.length; i++) {
        var opt = document.createElement('option');
        opt.innerHTML = values[i];
        opt.value = values[i];
        select.appendChild(opt);
    }
}

function scCancel() {

    getRadWindow().close();
}

function scCloseWebEdit(embedTag) {
    window.returnValue = embedTag;
    window.close();
}

if (window.focus && Prototype.Browser.Gecko) {
    window.focus();
}

DEMO TIME

Thanks for reading and watching!
